XL6009 4A Step Up Module Adjustable

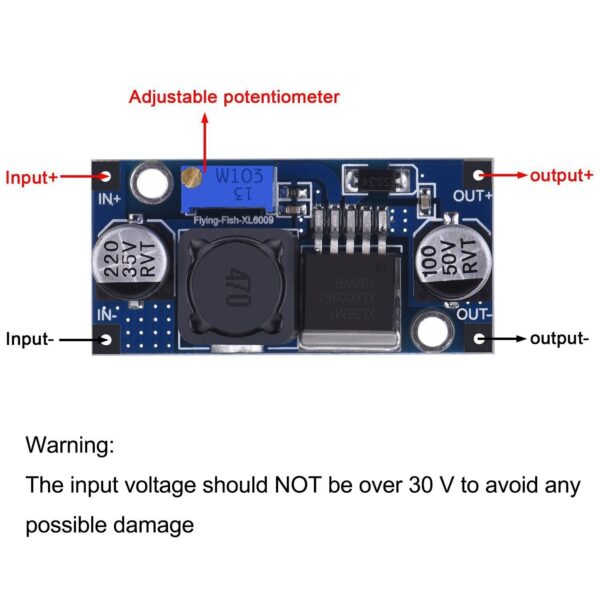

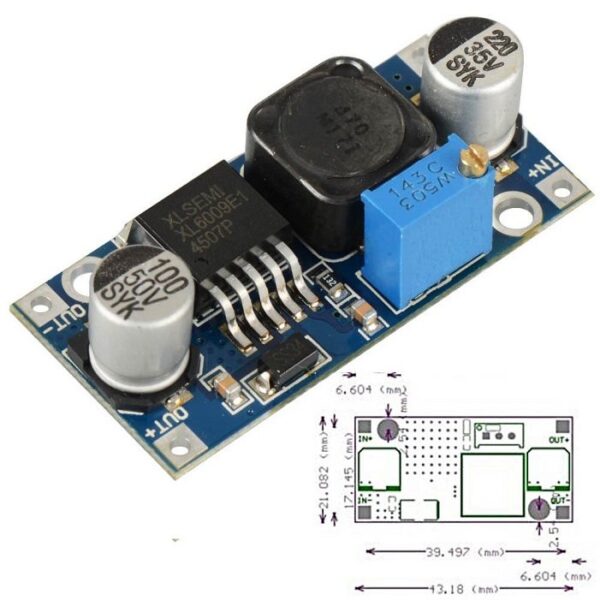

Description Electronic Projects need a power supply and in some cases, you might need to step up or boost the voltage. For example,  step up the voltage from a 4xAA battery to a 12V to power an Arduino via a DC jack input. According to the XL6009 datasheet, the maximum output current is 4A, but from our test, it can deliver 3A at peak. We recommend you maintain it at around the maximum 2A output current. It will need an additional heat sink if the output current is more than 2A continuously. Since it is a switching module (SMPS, Switch Module Power Supply) and switching at 400KHz, it offers high power efficiency, maximum of 92%.   Features and Specs: Boost Converter Switching Power Module Adjustable output voltage: 5V to 35V Wide range input voltage: 4.5V to 32V Step up converter, Vout > (Vin 1V) Maximum output current: Peak: 3A Continuous: 2A Output voltage ripple: 30mV Switching frequency: 400KHz Efficiency: 92% max Rated Power: 20W Operating temperature: -45ºC to 85ºC Dimension: 43mm x 21mm x 14mm   Packing List: 1 x XL6009 4A Step-Up Module
