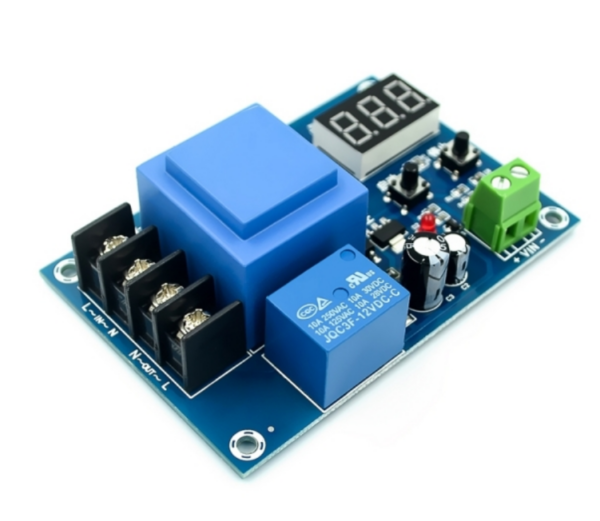

XH-M602 Digital Control Battery Charging Module

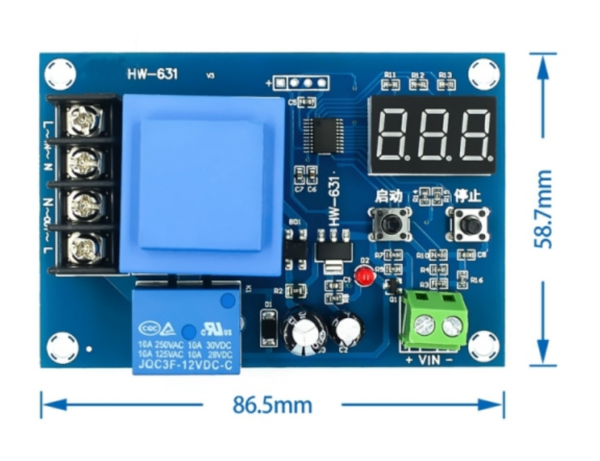

Description The XH M602 is a 220V smart charger that’s able to change the charging voltage to charge a battery. Basically turning the batteries charger off and on as needed. Digital display Monitor real-time voltage Set the value to start and stop the Voltage Protect the battery from damage due to loss of power or overcharge Specification: Input voltage: AC 220V Display precision: 0.1v Control precision: 0.1v Output type: output switch Voltage error: 0.1v/-0.1v Application Field: 3.7v~120v lithium or storage battery Weight: 110g Size: 86*58*24mm Instructions: Set the start voltage Under the normal display voltage state, press the start voltage button once to display the start charging voltage. Long press the start button, the digital screen flashes, and the start charging voltage value is set by the start and stop buttons. Set the stop voltage Under the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button, the digital screen flashes, and the charging voltage is stopped by the start and stop buttons. Reset Press and hold the start/stop button at the same time when the power is on, and the digital screen displays 888, which is the restoration of the factory settings. Common battery charging voltage parameters (for reference only) Note: The charging current should not exceed 1/10 of the battery capacity. The charging voltage is generally not higher than 1.2 times the nominal voltage of the battery, i.e. 6V battery, the charging voltage should be between 6-7.2V. e.g. 12v can be converted to 12v-14.4v; 72v can be converted to 72v – 86.4v Packing List: 1 x XH-M602 Lithium Battery Charging Control Module
