Recom Through Hole Switching Regulator – R-78HB5.0-0.5/W

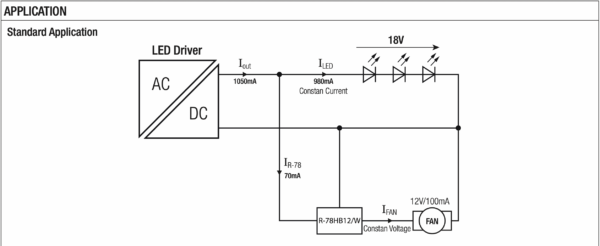

Description  The R-78HBxx/W series high efficiency, high input voltage switching regulators are ideally suited to replace 78xx linear regulators. An efficiency of up to 93% means that very little energy is wasted as heat. Therefore,  there is no need for any heat sinks with their additional space and mounting costs. A wide input voltage range allows the full stored energy utilization of standard 12, 24, and 36V batteries, as well as COB, and LED drivers. No external components are required to make a complete regulated, short-circuit protected supply. A built-in protection diode allows high capacitive loads. Typical applications in- include Auxiliary fan CV power supplies powered by CC LED drivers, and industrial, aerospace, and battery-powered applications. Specifications: Manufacturer: RECOM Product Category: Non-Isolated DC/DC Converters Mounting Style: Chassis Mount Product: Non-Isolated / POL Number of Outputs: 1 Output Output Power: 3 W Input Voltage, Min: 17 V Input Voltage, Max: 72 V Output Voltage-Channel 1: 5 V Output Current-Channel 1: 500 mA Maximum Operating Temperature: 85 C   Packing List: 1 x Recom Through Hole Switching Regulator – R-78HB5.0-0.5/W
