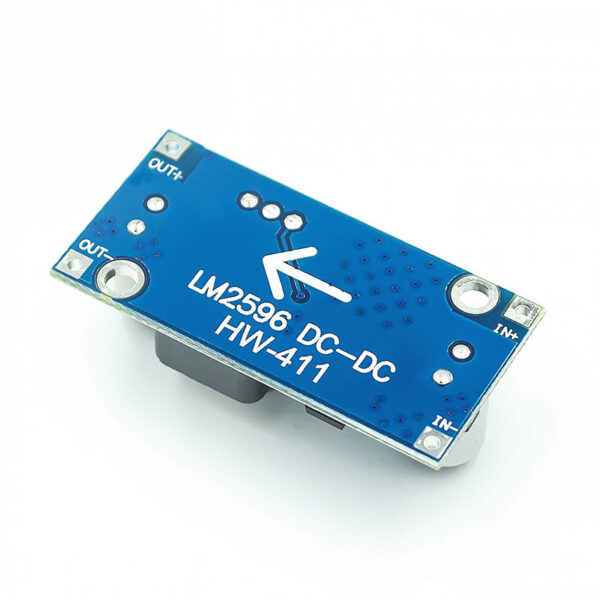

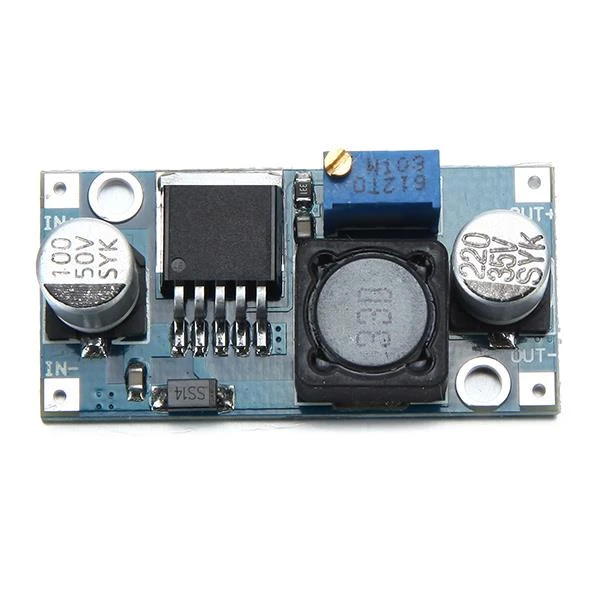

Step Down Voltage Regulator LM2596 Adjustable

Description This is a DC/DC step-down voltage regulator that converts input voltage between 4V and 40V into a smaller voltage between 1.25V and 30V, capable of driving a 3A load with excellent line and load regulation. In some projects, you might need different voltages (3-35V) for your devices. Without this kind of DC power source, you’ll find it time-consuming to buy a new one.  This module can speed up prototyping because you can get the voltage you need (such as 3.3V, 5V, and 9V) as easily as that. Input must be >1.5V higher than output. Specifications: Input voltage: 4V ~ 35V The output voltage: 1.23V ~ 30V Output Current :3A( Max) Conversion efficiency: 92%( MAX ) Output ripple: <30mV Switching frequency: 150KHz Working temperature: -45 ~ 85 Size :43mm * 21mm * 14mm (L*W*H) Packing List: 1x Step Down Voltage Regulator LM2596 Adjustable
