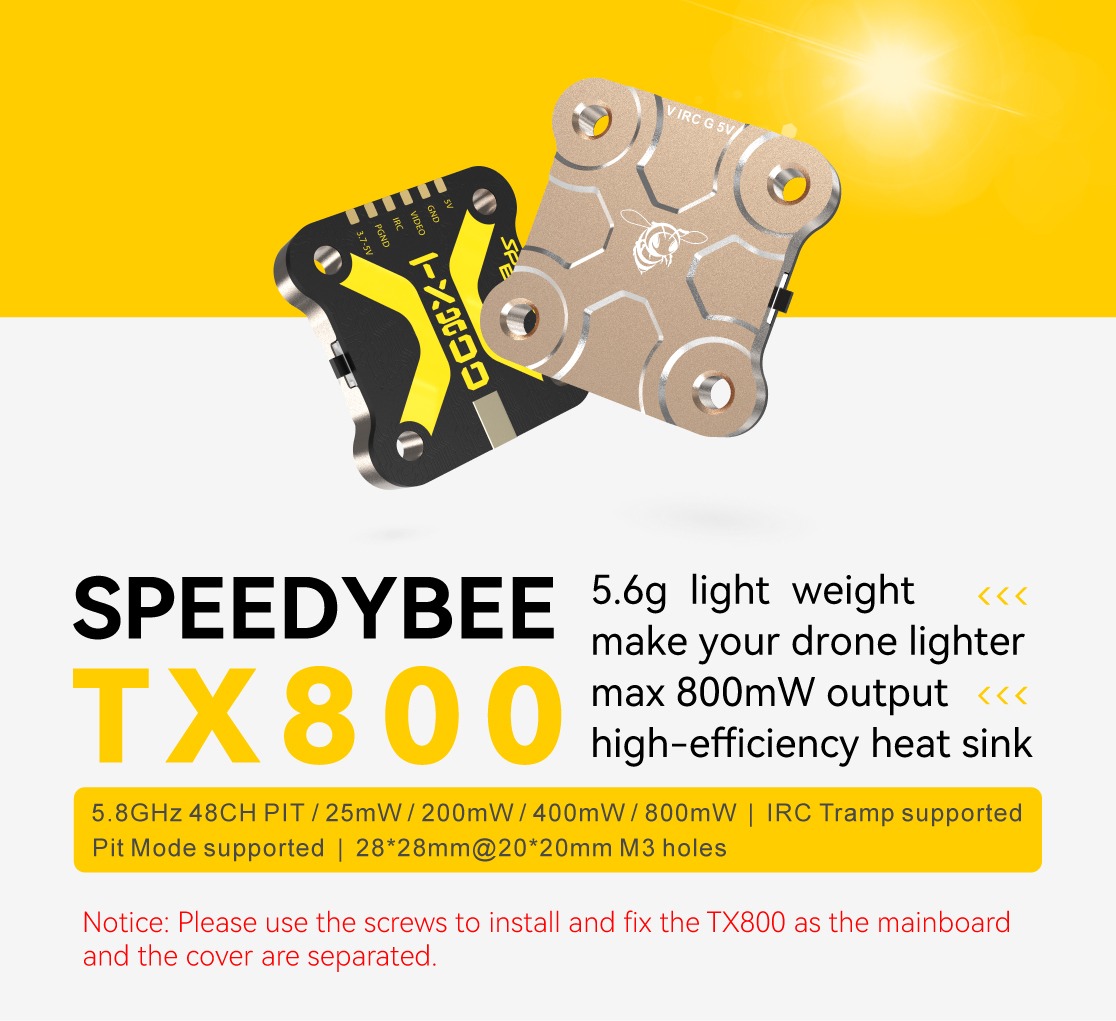

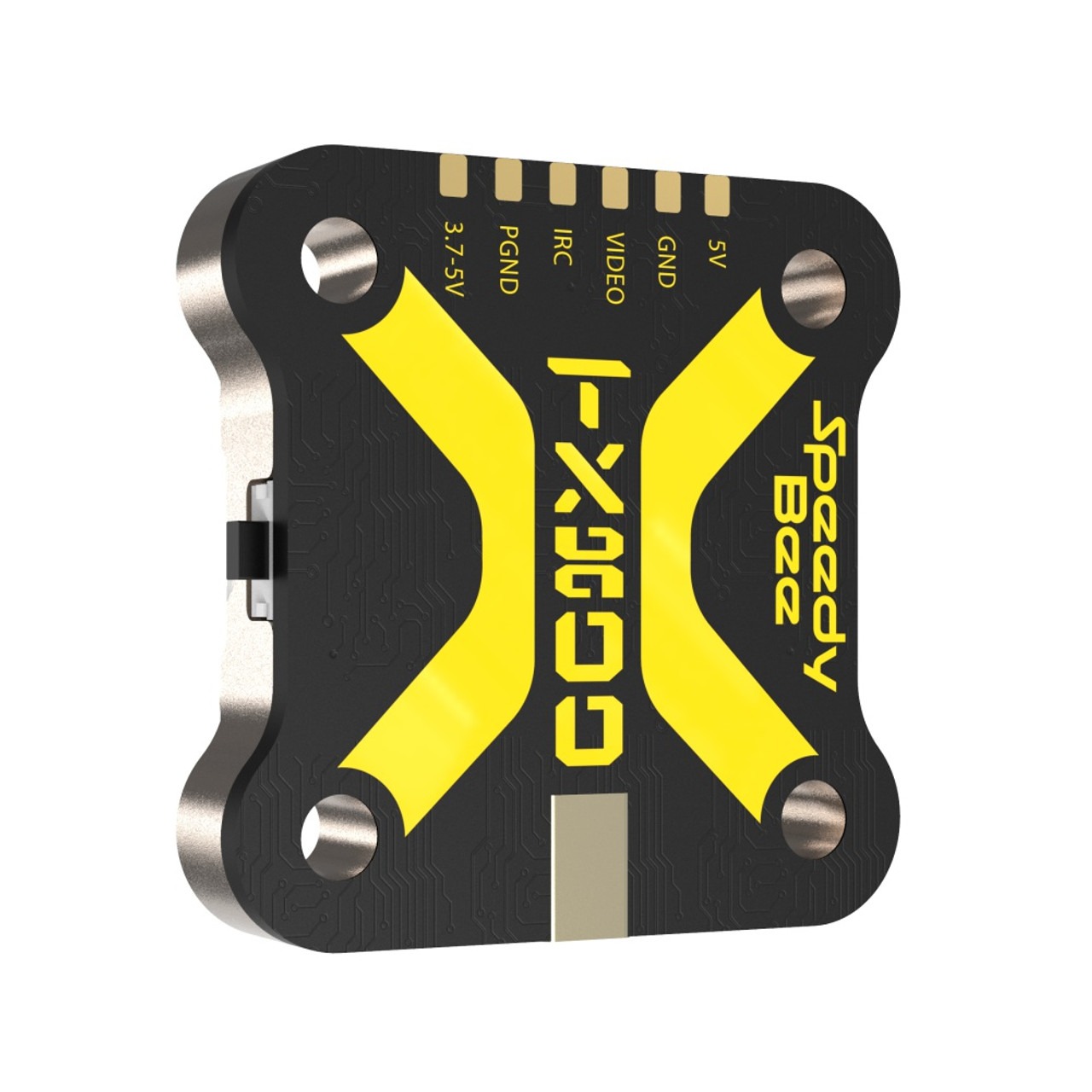

Description Full Manual including wiring diagram: TX800-manual_EN VTX Table JSON: SpeedyBee-TX800(USA).json Specifications: Frequency Channel 5.8GHz 48CH Output Power PIT/25mW/200mW/400mW/800mW Working Current 5V@250~750mA Voltage out 5V@max 250mA Voltage in 3.7-5V Video input impedance 75 Ohm Antenna Connector MMCX Weight 5.6g (without antenna) PCB Size 28mm*28mm@20*20 Mounting holes M4 holes on the PCB; M3 holes on the metal heat sink
