HDZero Freestyle V2 VTX Kit

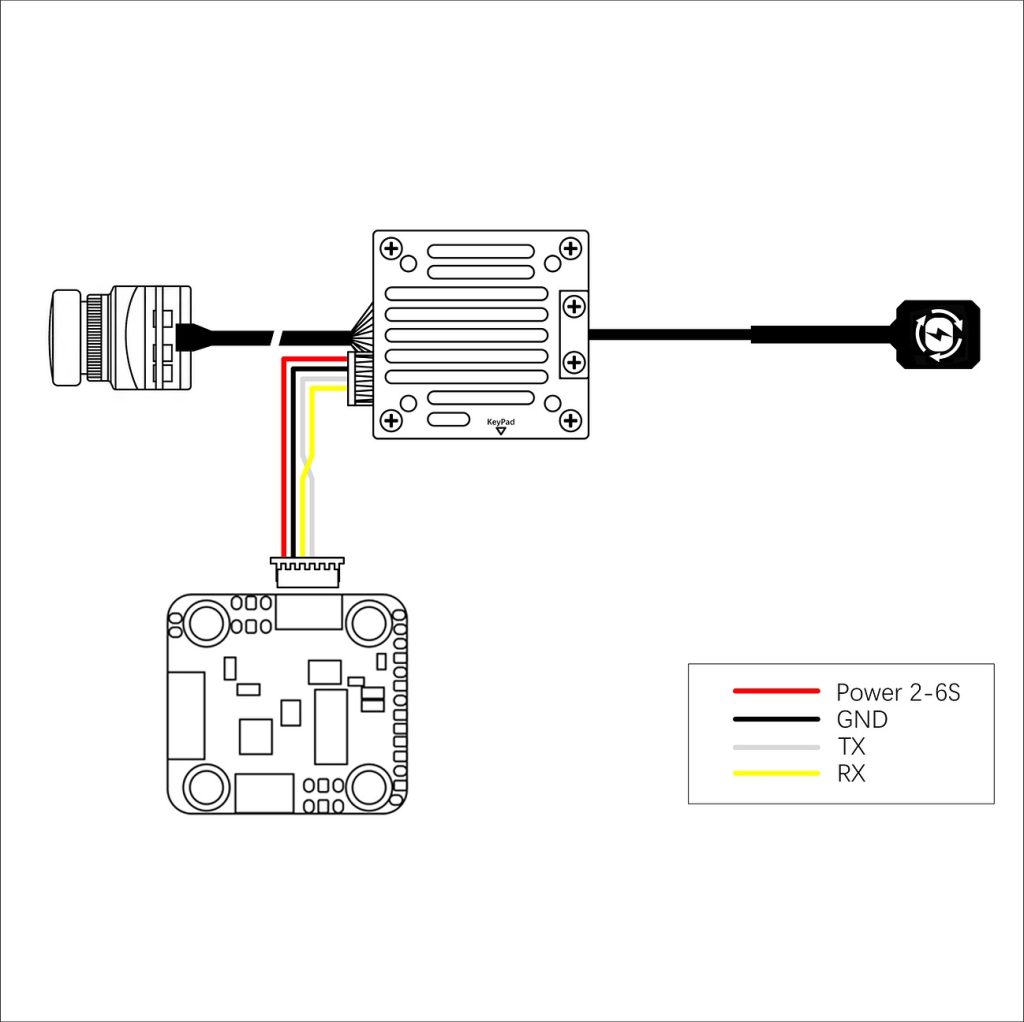

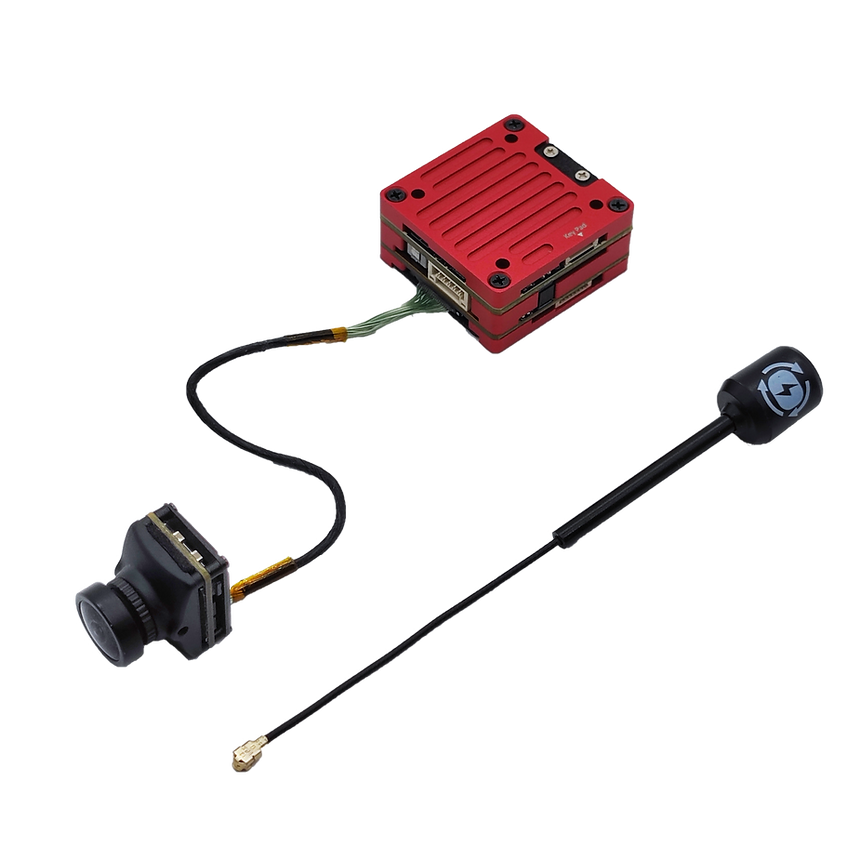

Description The HDZero Freestyle V2 VTX Kit comes with the second-generation 5.8GHz digital video transmitter, designed for 3-5 inch HD drones. It features durable construction with a CNC-machined case, offering RF shielding and improved signal integrity. The VTX includes a wire harness for a solderless power and MSP UART connection. Both the antenna and MIPI cable are securely fastened with a retention bar and screws for added stability. Features: Video Modes: 720p60, 1080p30, 540p60, 540p90 Max RF Output: Up to 1W on R1 channel (with license/approval) Specifications: Manufacturer: Divimath, Inc. Model: HDZero Freestyle V2 VTX Weight: 22.3g Dimensions: 29 x 30 x 14 mm Operating Frequency: 5.725-5.850 GHz Transmitter Power: 25mW, 200mW Mounting Pattern: 20×20 mm, M2 holes Antenna Interface: Secured U.FL Video In: Secured MIPI SmartAudio: Yes MSP Canvas Mode: Yes Input Power: 7-25V Operating Temperature: 32°F-104°F (0°C-40°C) Power Consumption: 6-15W Package Includes: 1x Freestyle V2 VTX 1x Nano 90 Camera (with 19 x 19 Mount) 1x HDZero RHCP antenna 1x 120mm Mipi Cable 1x Power Cable 1x SA Cable 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm). 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm) 1x Double Sided Tape (29 x 30 x 1mm )
