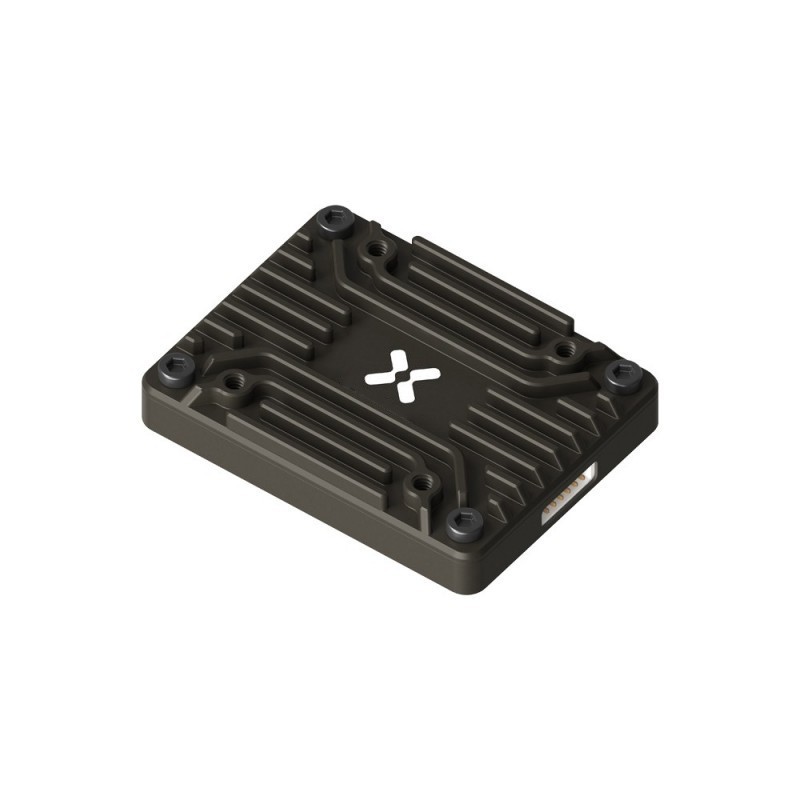

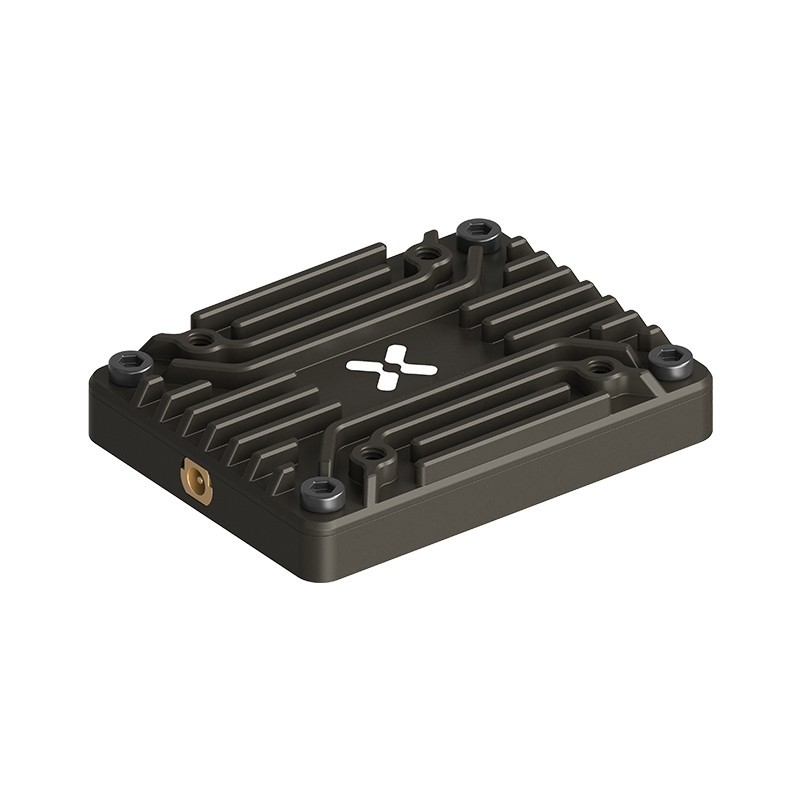

Foxeer Reaper Extreme 1.8W VTx

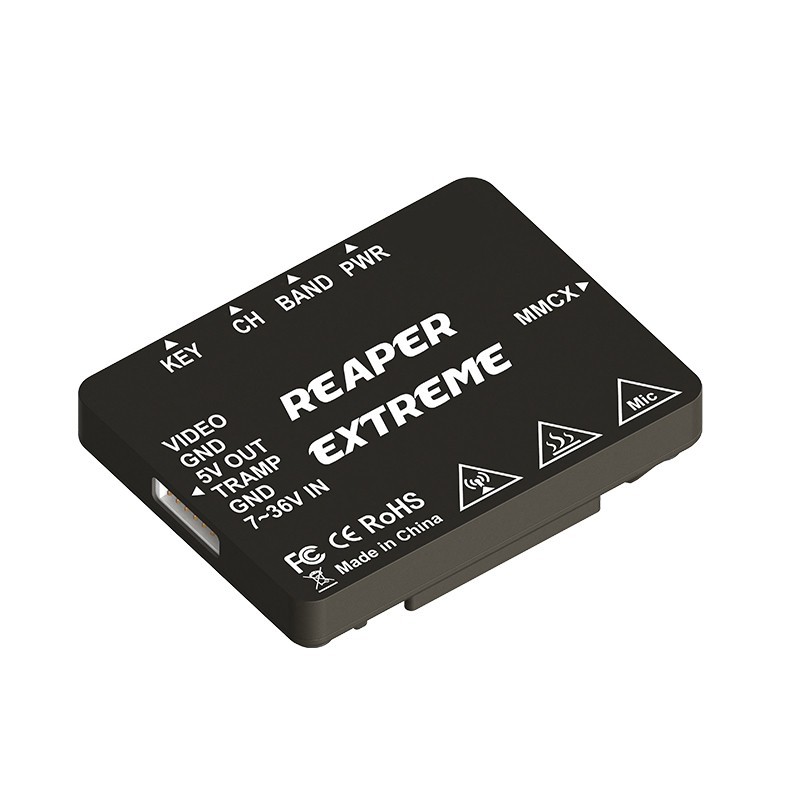

Description The Foxeer Reaper Extreme 1.8W VTx delivers unparalleled performance with up to 1.8W of power and 72 channels, ensuring crystal-clear video transmission for your FPV adventures. Unlock all frequencies and power levels effortlessly with its intuitive key button functionality. Specifications: Input Voltage: 9~36V Output Voltage: 5V Channels: 72CH Power: 25mW/200mW/500mW/1W/1.8W, red light flash 1/2/3/4/5 times correspondingly Pit: Double click to enter Weight: 13g Mounting Hole: 20*20mm M2 2.8mm depth Size: 36*27.5*8mm Consumption: 850ma;10V/1.8W Unlock the frequencies and power levels Long press the “KEY” button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status. PIT Mode On/Off Double-click the “KEY” button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power. Note: If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over. BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default. Package Includes: 1 x Foxeer Reaper Extreme 1.8W VTx
