3M 7622-S-2 – COLD SHRINK TERMNTN KIT

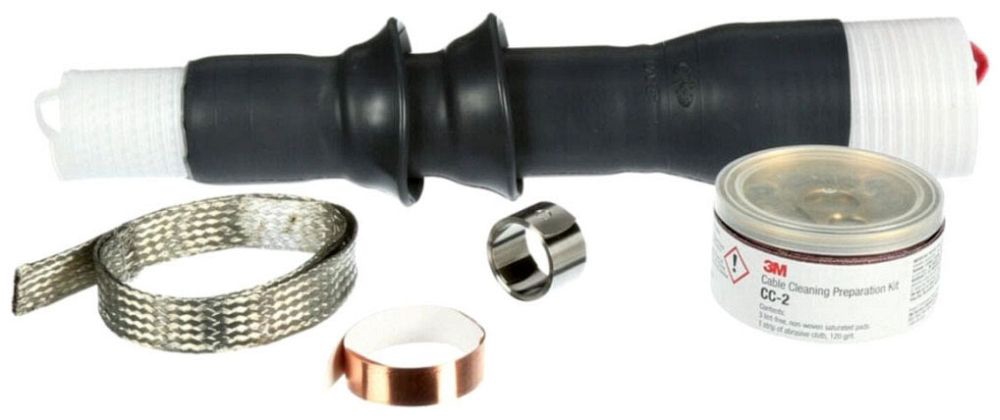

Brand Name: 3MPackage Height: 5.8000UPC: 05400742170Category #: 6413MSDS Sheet: Download PDFAdditional Information: COLD SHRINK TYPE; TAPE/WIRE SHIELD, UNISHIELD CABLE TYPE; (3) HI-K SILICONE RUBBER TERMINATION, (3) CONSTANT FORCE SPRING, (3) PRE-FORMED GROUND BRAID, (6) MASTIC SEAL STRIP, (1/2) COPPER FOIL SHIELDING TAPE STRIP, (1) CABLE PREPARATION KIT, (1) INSTRUCTION SHEET CONTENTS; LUG CONNECTOR TYPE; 5 TO 15 KILOVOLT VOLTAGE RATING; 4/0 AWG TO 400 KCMIL (5 KILOVOLT), 3/0 AWG TO 300 COIL (8 KILOVOLT), 2 TO 4/0 AWG (15 KILOVOLT) CONDUCTOR SIZE; 0.64 TO 1.08 INCH CABLE INSULATION OUTER DIAMETER; 110 KILOVOLT BIL RATING; (2) SKIRTED INSULATOR TYPE; SILICONE RUBBER INSULATOR MATERIAL; 3 TERMINATION(S); INSTALLED LENGTH 9.8 INCH; NUMBER OF CONDUCTORS 1; APPLICABLE STANDARD IEEE; 7620-S MODEL
